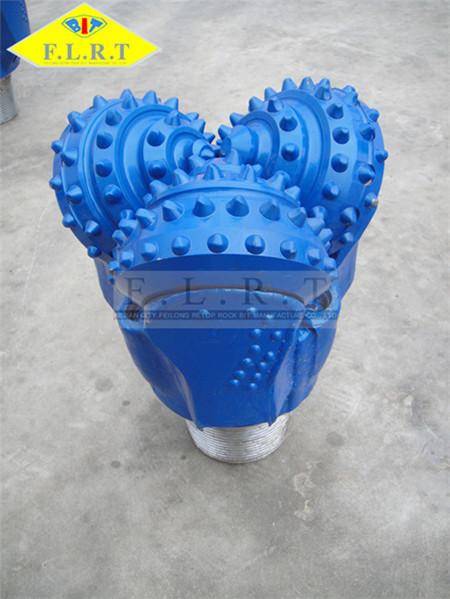

517 IADC Oil Well Drill Bit Blue Color Drill Cone Bit For Medium Hard Formation

Product Categories

FLRT Bit

Contact Now

517 IADC Oil Well Drill Bit Blue Color Drill Cone Bit For Medium Hard Formation

Name: 517 IADC Oil Well Drill Bit Blue Color Drill Cone Bit For Medium Hard Formation
Brand: FLRT
Price: 1 USD

Brand Name : FLRT

Model Number : 12 1/4" FA517G

Certification : API-7-1, ISO 9001:2008

Place of Origin : China

MOQ : 20pcs

Supply Ability : 300pcs per quarter

Delivery Time : 5~45 workdays

Packaging Details : plywood box / iron box

Bearing Type : Sealed Journal Bearing With Gauge Protection

Cutting Material : TCI

Standard : API-7-1, ISO 9001:2008

Series : FA

IADC : 517

G : Reinforced Gauge Protection

Shirttail : Alloy Hard Facing

TCI : Tungsten Carbide Insert

Contact Now

Tricone Rock Bit, Oil Well Drilling Bit , Medium Hard Formation , TCI Bit , Friction Bearing

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code		417	437 447	517 527	517 527	537 547	617 627	637
WOB	KN/mm(Bit Dia.)	0.4~0.9	0.4~0.9	0.35~1.0	0.35~1.0	0.5~1.0	0.6~1.1	0.7~1.2
WOB	Lb/in. (Bit Dia.)	2285~5142	2285~5142	2000~5714	2000~5714	2857~5714	3428~6285	4000~6857
Rotation Speed (Rpm)		140~60	240~70	125~50	~60	110~50	100~40	80~4

O - rings

- Donut-shaped O-rings are used in many roller-cone bit applications. O-rings are manufactured from elastomers (synthetic rubbers) that withstand the temperatures, pressures, and chemicals encountered in drilling environments. They are a traditional, but still consistently reliable, seal system.

- An O-ring is installed in a seal gland to form a seal system. The gland holds the O-ring in place and is sized so that the O-ring is compressed between the gland and the bearing hub at which sealing is required. It presses the interior wall of the O-ring against the hub and the exterior diameter of the O-ring against the gland. These latter forces prevent the seal from turning in the gland and experiencing wear on the outer surfaces by rotational contact with the gland
