Blue Tricone Rock Bit 12 1/4" FG515G IADC 515 With Sealed Roller Bearing

Product Categories

FLRT Bit

Contact Now

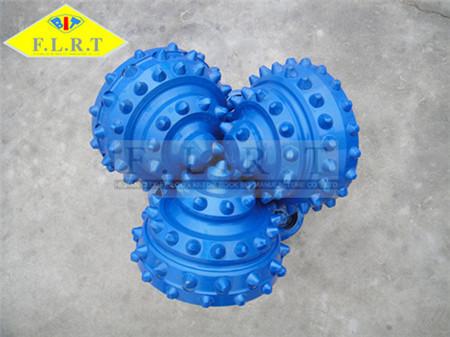

Blue Tricone Rock Bit 12 1/4" FG515G IADC 515 With Sealed Roller Bearing

Name: Blue Tricone Rock Bit 12 14quot FG515G IADC 515 With Sealed Roller Bearing
Brand: FLRT
Price: 1 USD

Brand Name : FLRT

Model Number : 12 1/4" FG515G

Certification : API-7-1, ISO 9001:2008

Place of Origin : China

MOQ : 20pcs

Supply Ability : 300pcs per quarter

Delivery Time : 5~45 workdays

Packaging Details : plywood box / iron box

Bearing Type : Sealed Roller

Cutting Material : TCI

Standard : API-7-1, ISO 9001:2008

Series : FG

IADC : 515

Application 1 : Water Well Drilling

Application 2 : HDD Drilling

Application 3 : Gas Well Drilling

Application 4 : Reaming

Contact Now

12 1/4" Tricone Rock Bit, Water Well Drilling Bit , IADC 515 , Sealed Roller Bearing

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

Types & IADC Code		415	435 445	515 525	535 545	615 625	635
WOB	KN/mm(Bit Dia.)	0.35~0.95	0.35~0.95	0.4~0.7	0.4~0.7	0.45~1.1	0.5~1.2
WOB	Lb/in. (Bit Dia.)	2000~5428	2000~5428	2285~4000	2285~4000	2571~6285	2857~6857
Rotation Speed (Rpm)		150~60	150~60	140~80	120~80	110~60	100~50

Roller-bearing systems

Roller bearings are a common bit-bearing system because they can reliably support large loads and generally perform well in the drilling environment . They are typically used on larger-diameter bits (> 14 in.), which have more physical space to accommodate the rollers. To enhance bearing life, leading manufacturers continually research bearing materials, sizing, and shape.
